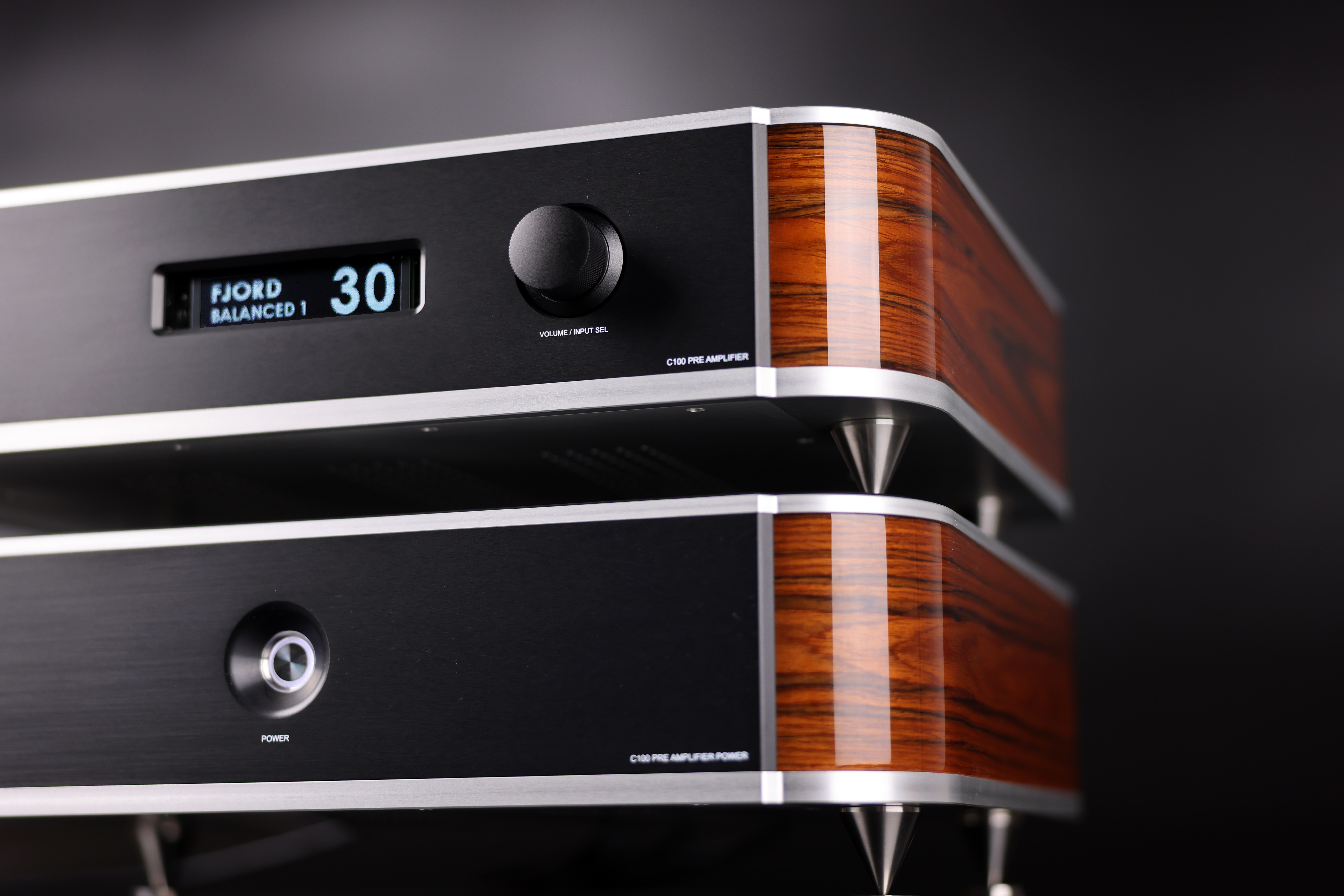

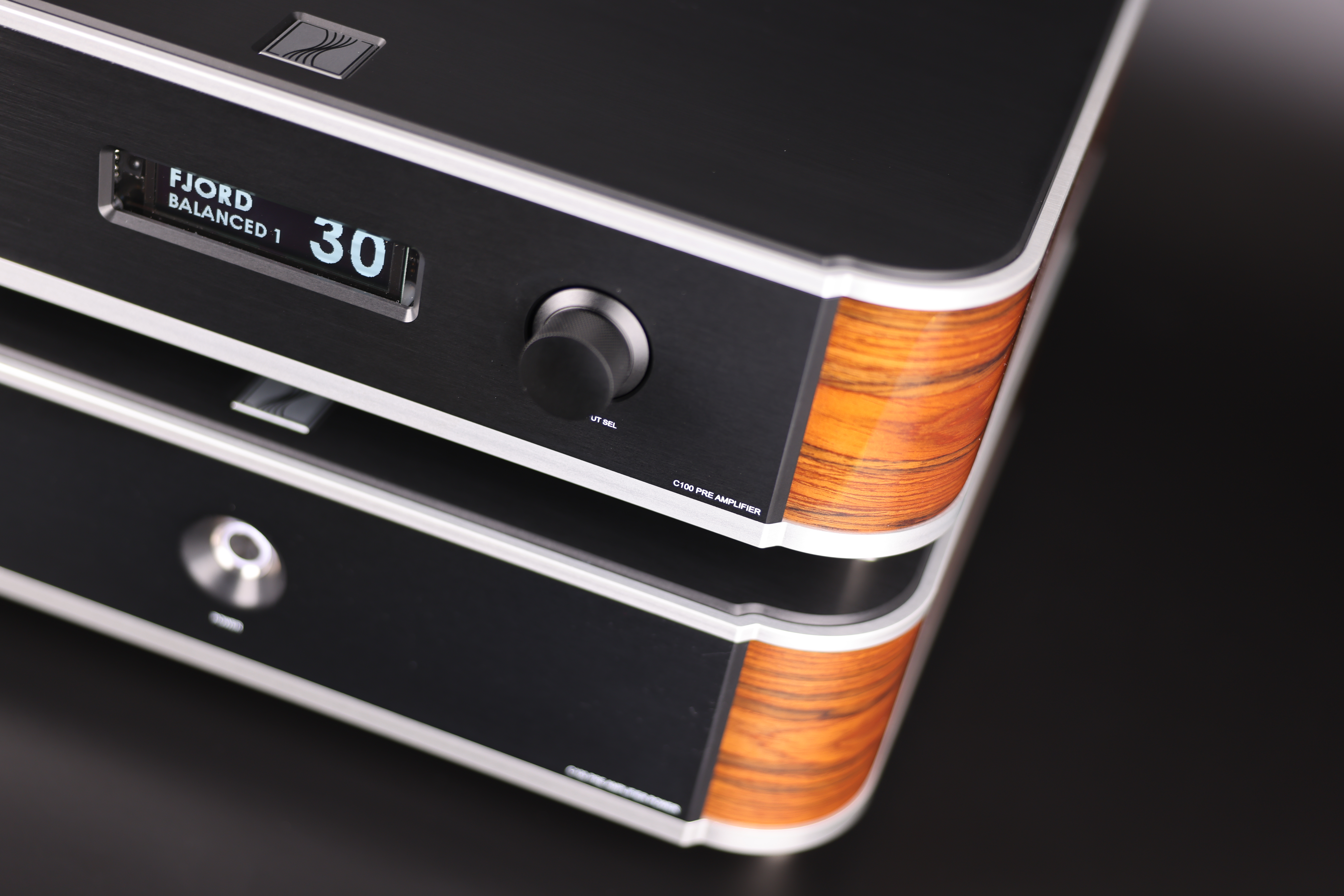

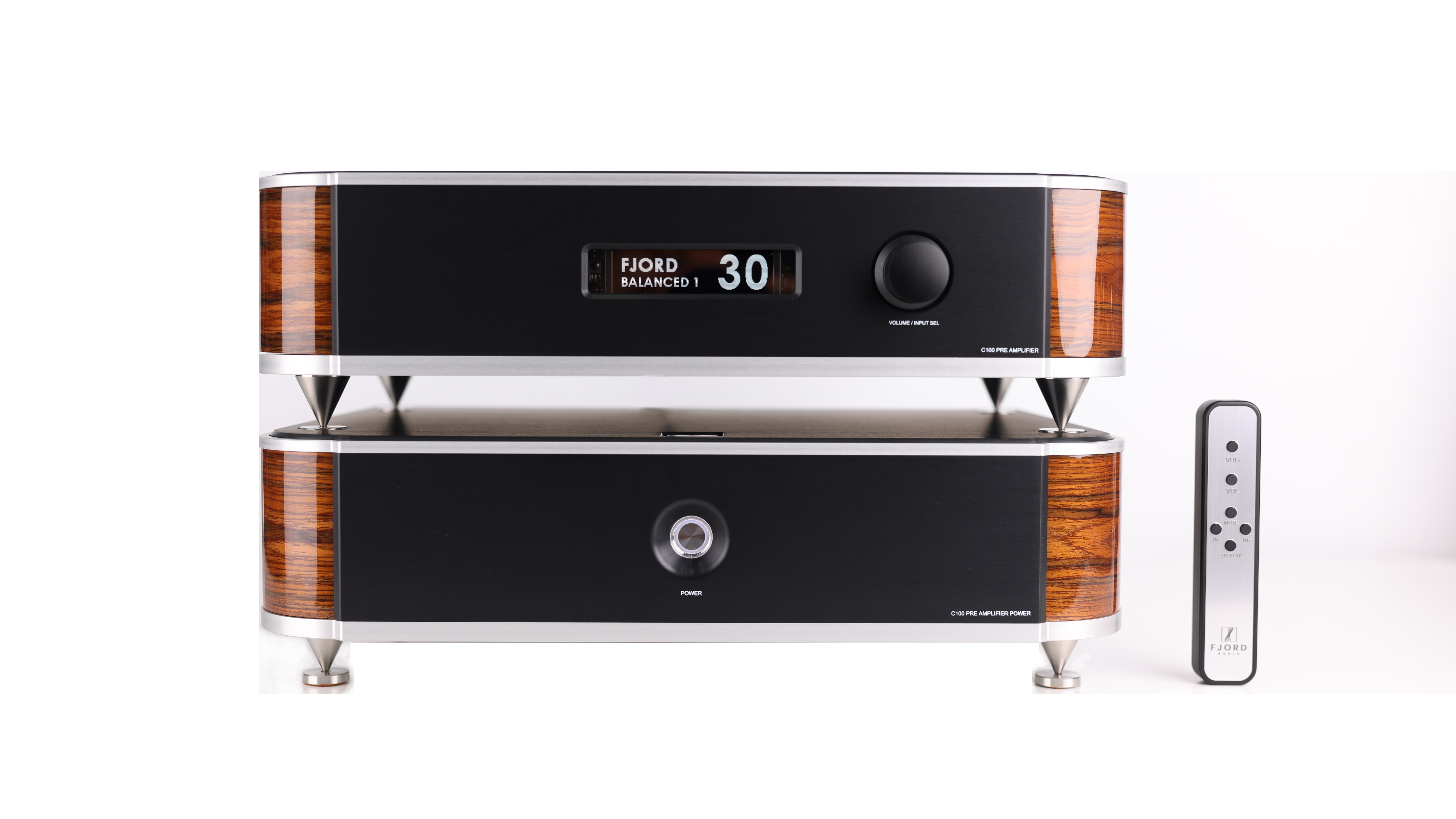

○ Model Name : C100

○ Circuit Type : Tube Line Pre Amplifier

○ Circuit Design : Zero Feedback

○ Number of Channels : 2

○ Class Type : Class A

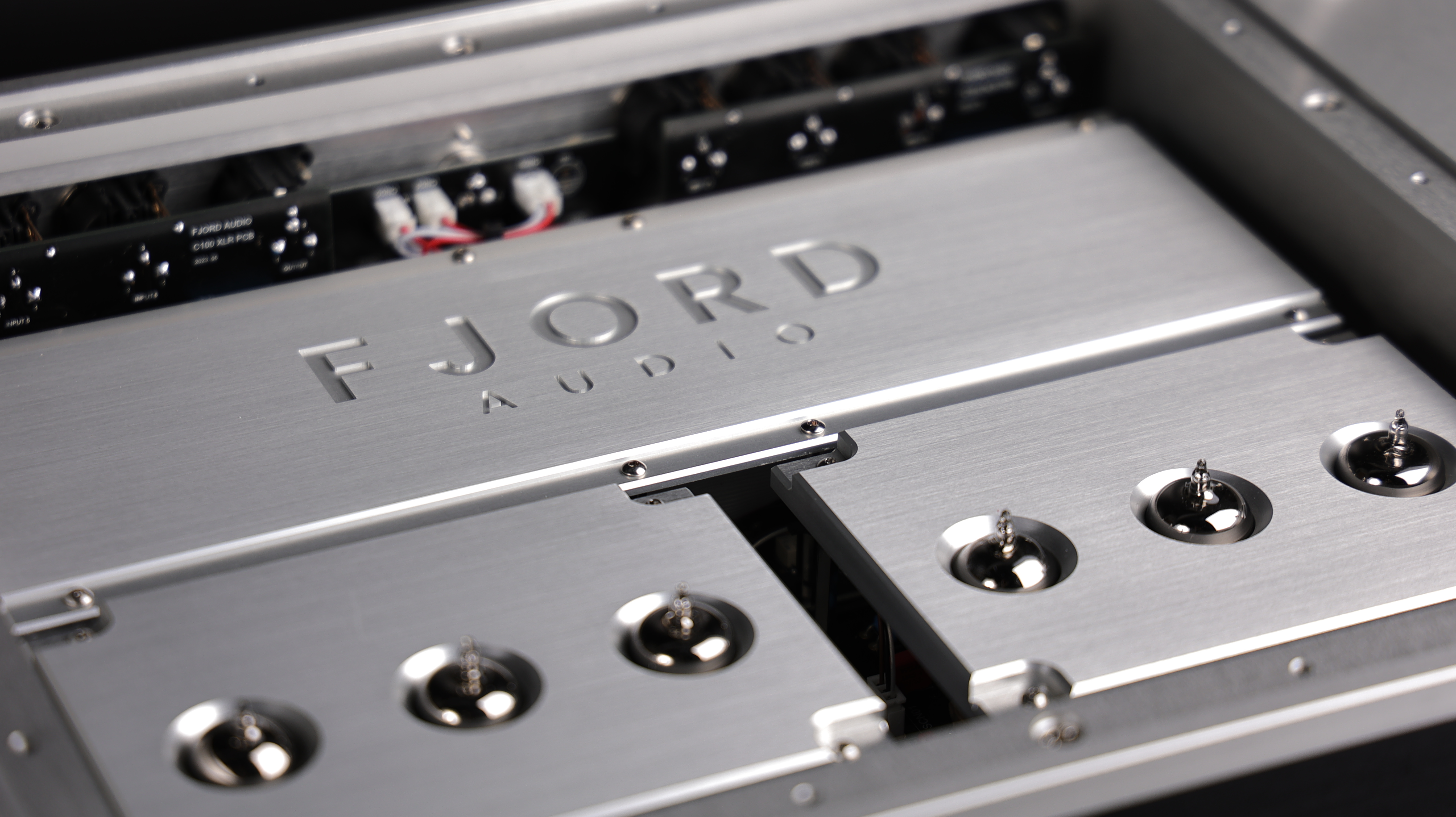

○ Used Tubes : 12AU7 * 4, 12AT7 * 2

○ Output Level : 5Vrms (Balanced)

○ Input Impedance : 100K

○ Output Impedance : 220ohm

○ T.H.D : 0.005%
○ SNR : 100dB

○ Frequency Response :  10Hz ~ 100kHz (-1dB)

○ Power Consumption : 70 W

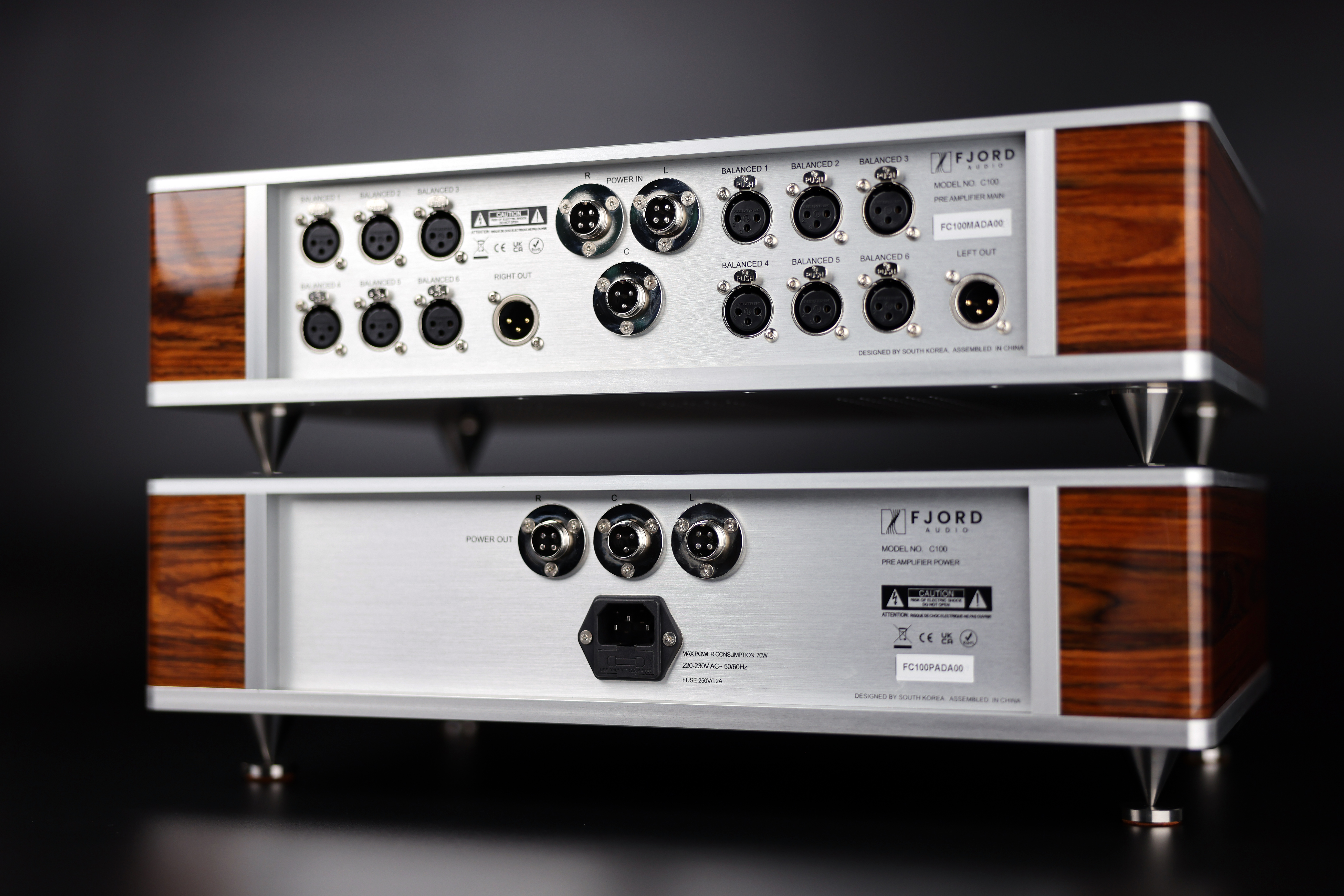

○ Input : 6 × XLR (BALANCED)

○ Output : 1 x XLR (BALANCED)

○ Main AC Power in : 220VAC (210~230VAC available)

○ Size (W x H x D)mm :  Main 460 * 130 * 325,  Power 460 * 130 * 325

○ Weight : Main 13.9kg,  Power 18.3kg
